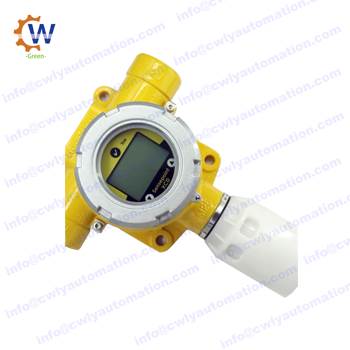

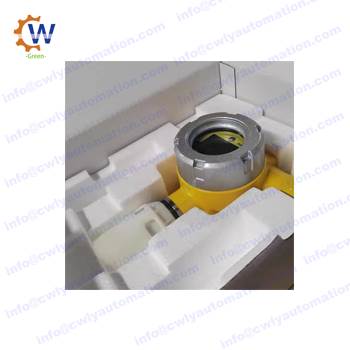

Honeywell SensePoint XCD SPXCDALMFX
The Honeywell SensePoint XCD is a compact gas detector for measuring toxic or flammable (both catalytic and infrared) gases. The instrument is suitable for installation in zoned areas according to ATEX137 .
Sensepoint XCD
With the Sensepoint XCD detection system, Honeywell provides easy to use, low maintenance sensory devices for monitoring explosive atmospheric conditions in a variety of industrial settings. The Sensepoint XCD system monitors for explosive oxygen gas, toxic gas, and flammable conditions and constantly relays status through transmitters utilizing a simply traffic light LCD system which can be easily seen and understood from a distance.
Email:
[email protected]Tel: +86 13667121125 whatsapp/ vk/ telegram also available
Company: CW Green Tech
The analog output and programmable contacts allow direct connection of signaling and peripheral equipment.

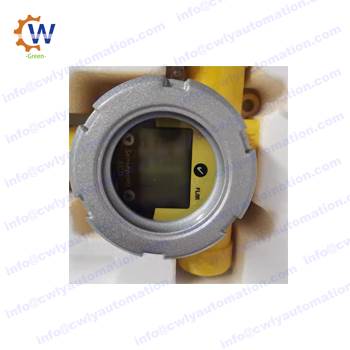

The Sensepoint XCD uses a three-colour LCD display that clearly indicates the status of the gas detector. A steady green backlight indicates normal operation; flashing yellow indicates a fault and flashing red indicates an alarm.
Executed according to ATEX standards
Three-color status LCD display
Operation with supplied magnetic key
Compact and robust design
Input voltage 16 to 32VDC (24VDC nominal)
Exits 4-20 mA and alarm relay
Material LM25 or 316SS
Relay 3x 5A@250 VAC normally open or closed
H2S 0-100.0 ppm (50.0 ppm standard)
CO 0-1000ppm (300 ppm standard)
O2 0-25.0%
Flammable gas 0-100% LEL (100% standard)
CO2 0-2.00%
Manufacturer Honeywell Analytics
Item Code SPXCDALMFX, SPXCDXSFXSS, SPXCDALMO1, SPXCDXSO1SS
Email:
[email protected]Tel: +86 13667121125 whatsapp/ vk/ telegram also available
Company: CW Green Tech
Superb Versatility
The Sensepoint XCD system provides a catch all-detection system which has worldwide industry approvals and is compliant with all relevant standards. Suited for indoor use as well as the harshest outdoor conditions, the Sensepoint XCD systemis a versatile product for use in any potentially dangerous industrial atmosphere. The unit is available in both stainless steel and aluminum housing options, both of which are resistant to explosions. The XCD transmitter systems are for three separate environmental conditions (flammable, toxic, and oxygen). Each transmitter has a variety of sensors available for use. Each transmitter will automatically recognize the sensor within its category. The plug-in design of the sensors allows users to simply plug the sensor into the transmitter. The transmitter will automatically adjust and configure for the appropriate sensor settings.
Simplicity in Design
The Sensepoint XCD system is easy to install with a simple plug-in design, a built-in mounting system, and comes equipped with versatile wiring receptions to limit compatibility issues for the end user. Once installed, the system utilizes a “traffic light” type display of green for normal, yellow for warning, and red to alert an atmospheric issue. The maintenance of the system is just as user-friendly with routine maintenance easy and ergonomic enough to be done by one person. The system is also simple enough that it can be used and maintained with little training.
Cost Savings
The Sensepoint XCD system provides a business with cost reductions in both hardware and staffing. The versatile usage and low maintenance of the system reduces the resources needed to monitor conditions and allows personnel to focus on their tasks at hand. The system also provides personnel, and any other parties in the area, peace of mind that their conditions are being constantly monitored for danger and relayed in a way that anyone can detect and bring awareness to dangerous conditions.
Use 3 wire, 4-20mA and RS485 MODBUS output fixed point detector with in-built alarm and fault relays for the protection of personnel and plant from flammable, toxic and Oxygen hazards. Incorporating a transmitter with local display and fully configurable via non-intrusive magnetic switch interface.
Electrical
Input Voltage Range 16 to 32VDC (24VDC nominal)
Max Power Consumption Maximum power consumption is dependent on the type of gas sensor being used. Electrochemical cells = 3.7W, IR = 3.7W and catalytic = 4.9W. Maximum inrush current = 800mA at 24VDC
Current Output Sink or source
Relays 3 x 5A@250VAC. Selectable normally open or normally closed (switch) and energized/de-energised (programmable)
Alarm relays default normally open/de-energized. Fault relay default normally open/energized
Communication RS485, MODBUS RTU
Construction
Material Housing: Epoxy painted aluminium alloy LM25 or 316 stainless steel
Sensor: 316 stainless steel
Weight (approx) Aluminium Alloy LM25: 4.4lbs
316 Stainless Steel: 11lbs
Mounting Integral mounting plate with 4 x mounting holes suitable for M8 bolts. Optional pipe mounting kit for horizontal or vertical pipe Ø1.5 to 3" (2" nominal)
Email:
[email protected]Tel: +86 13667121125 whatsapp/ vk/ telegram also available
Company: CW Green Tech
SPXCDULNG1
XCD Gas Detector, includes hydrogen EC sensor cartridge 0 to 1000ppm
SPXCDULNG1
XCD Gas Detector, includes hydrogen EC sensor cartridge 0 to 1000ppm
SPXCDULNRXM
UL/INMETRO approved SP XCD Flammable Methane (CH4) IR 0-100% LEL (20 to 100% LEL, 10% LEL) with LM25, 3/4"NPT with Modbus
SPXCDULNRXM
UL/INMETRO approved SP XCD Flammable Methane (CH4) IR 0-100% LEL (20 to 100% LEL, 10% LEL) with LM25, 3/4"NPT with Modbus
SPXCDULNS2
Explosion Proof Transmitter (EC), 4-20mA, 3 Relays, Sensepoint Toxic Sensor, Sulfur dioxide (SO2) 0-15 ppm Aluminum Enclosure, Class I, Div 2
SPXCDULNS2
Explosion Proof Transmitter (EC), 4-20mA, 3 Relays, Sensepoint Toxic Sensor, Sulfur dioxide (SO2) 0-15 ppm Aluminum Enclosure, Class I, Div 2
SPXCDULNS2M
Explosion Proof Transmitter (EC), 4-20mA, 3 Relays, Modbus, Sensepoint Toxic Sensor, Sulfur dioxide (SO2) 0-15 ppm Aluminum Enclosure, Class I, Div 2
SPXCDULNS2M
Explosion Proof Transmitter (EC), 4-20mA, 3 Relays, Modbus, Sensepoint Toxic Sensor, Sulfur dioxide (SO2) 0-15 ppm Aluminum Enclosure, Class I, Div 2
SPXCDULNS2R
XCD DIV2 cCSAus LM25 SO2 0-15PPM JB
SPXCDULNS2R
XCD DIV2 cCSAus LM25 SO2 0-15PPM JB
SPXCDULNS2RM
Explosion Proof Transmitter (EC), 4-20mA, 3 Relays, Modbus, Sensepoint Toxic Sensor, Sulfur dioxide (SO2) 0-15 ppm Aluminum Enclosure, Class I, Div 2 w/ Junction Box
SPXCDULNS2RM
Explosion Proof Transmitter (EC), 4-20mA, 3 Relays, Modbus, Sensepoint Toxic Sensor, Sulfur dioxide (SO2) 0-15 ppm Aluminum Enclosure, Class I, Div 2 w/ Junction Box
XCDRTDKIT
Calibration cover, potentiometer, adjustment tool, flow housing, regulator, tubing for XCD RTD (contains 2106B2114, 02000-A-1645, 998-100-012, 998-100-003, 998-100-004)
XCDRTDKIT
Calibration cover, potentiometer, adjustment tool, flow housing, regulator, tubing for XCD RTD (contains 2106B2114, 02000-A-1645, 998-100-012, 998-100-003, 998-100-004)
