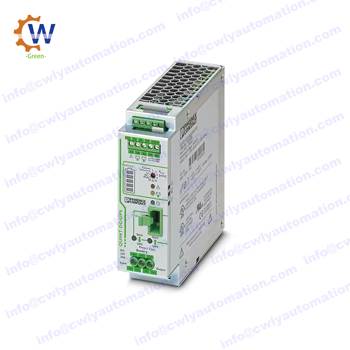

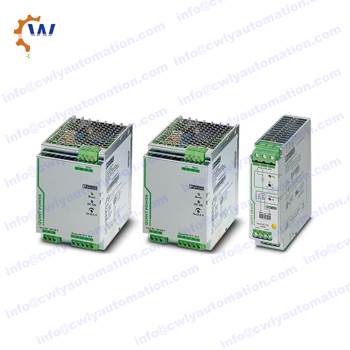

Phoenix Contact DIN Rail Power Supply, Shock and Vibration Resistant, IP20 Rating - QUINT-PS/1AC/24DC/ 5 - 2866750
Turn to this DIN rail power supply from Phoenix Contact when you want a PSU that's proactive on troubleshooting. A preventative monitoring feature warns you if the PSU enters a critical operating state. This helps you act quickly to prevent equipment failure and avoid system downtime. With the unit's convenient pluggable screw terminals, you get the benefits of robust screw connections and the improved accessibility of a removable plug-in module. LED indicators also help keep you up-to-date on how the device is working.
Thanks to its universal inputs and stable output voltage of 24V DC (±1%), this versatile unit is handy for use with battery-boosted applications. You can even tweak the output further to suit a specific application, as it's adjustable from 18 to 29.5V DC.
Features & Benefits
• Safe from EMI, as indicated by EMC Directive 2014/30/EU approval
• Resists shock and vibration according to IEC 60068 for use near moving machinery
• Selective fuse-breaking balances safety protections against preventing system downtime
• Mean time between failures of more than 635,000h at +40°C) according to IEC 61709, so you know it's built to last
• IP20 rating means it won't shock you if it makes contact with your fingers
Please contact me get more information
Email:
[email protected]VK/Whatsapp/Telegram:+8613667120925
Website: www.cwlyautomation.com
Series QUINT POWER
Type Switched Mode
Electrical Phase 1
Number of Outputs 1
AC or DC Input Voltage ac
Input Voltage 85 → 264V ac
AC or DC Output Voltage dc
Output Voltage 24V dc
Output Current 5A
Power Rating 120W
Dimensions 125 x 40 x 130mm
Height 130mm
Depth 130mm
Width 40mm
Efficiency >90%
Model QUINT-PS/1AC/24DC/ 5
Minimum Temperature -25°C
Standards With cULus Listed, RoHS Compliant
Maximum Temperature +70°C
Ripple And Noise 40mV Pk-Pk
Mounting Type DIN Rail Mount
Special Features Fuse Breaking
Load Regulation ±1%
MTBF 1134000h
Phoenix Contact Switching Power Supply; QUINT-PS/ 1AC/24DC/ 5; 24VDC OUT; 5A; 85-264VAC / 90-350VDC IN; Single Phase; DIN Rail Mount; Metal Frame
DIN rail power supply unit 24 V DC/5 A, primary switched-mode, 1-phase. The SFB technology (Selective Fuse Breaking Technology) can now also be used to trigger standard power circuit breakers reliably and quickly.
Switched-Mode Power Supply AC input voltage: 85...264 VAC DC input voltage: 90...350 VDC Dimensions W x H x D: 40 x 130 x 125 mm Input frequency: 45...65 Hz Operating temperature: -25...+70 °C Output current 1: 5 A Output voltage 1: 18...29.5 VDC MTBF: >500 000 h Manufacturer Article n°: 2866750 Input voltage: 85...264 VAC Input voltage, nominal: 100...240 VAC Output voltage 1, nominal: 24 VDC Outputs: 1 Phases: 1 Efficiency: 90 %
